Applications
- Gate Entry

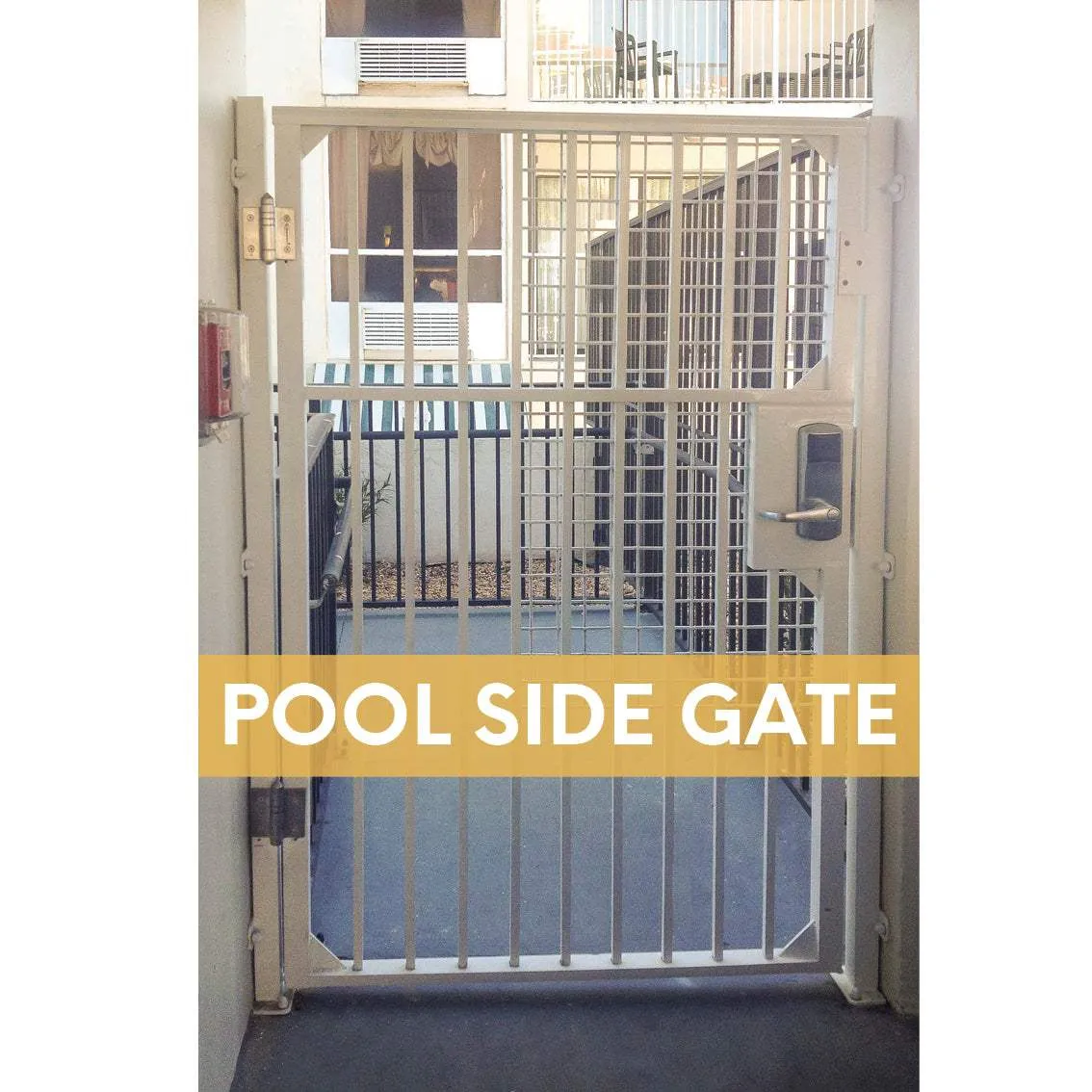

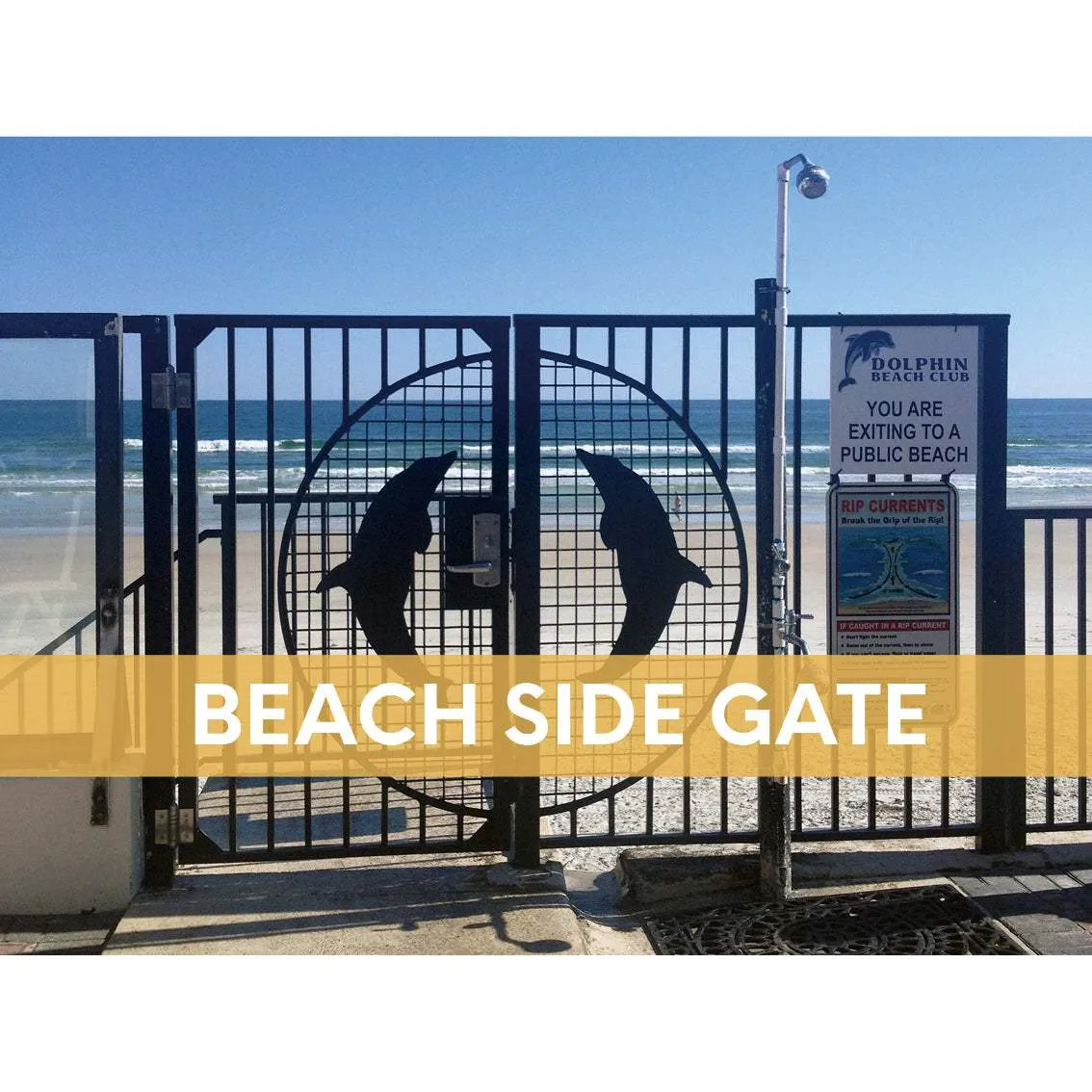

- Pool Gate
- Fully Exterior
- Courtyard Style
- Breezy environment
- Need Solutions? We got your back!

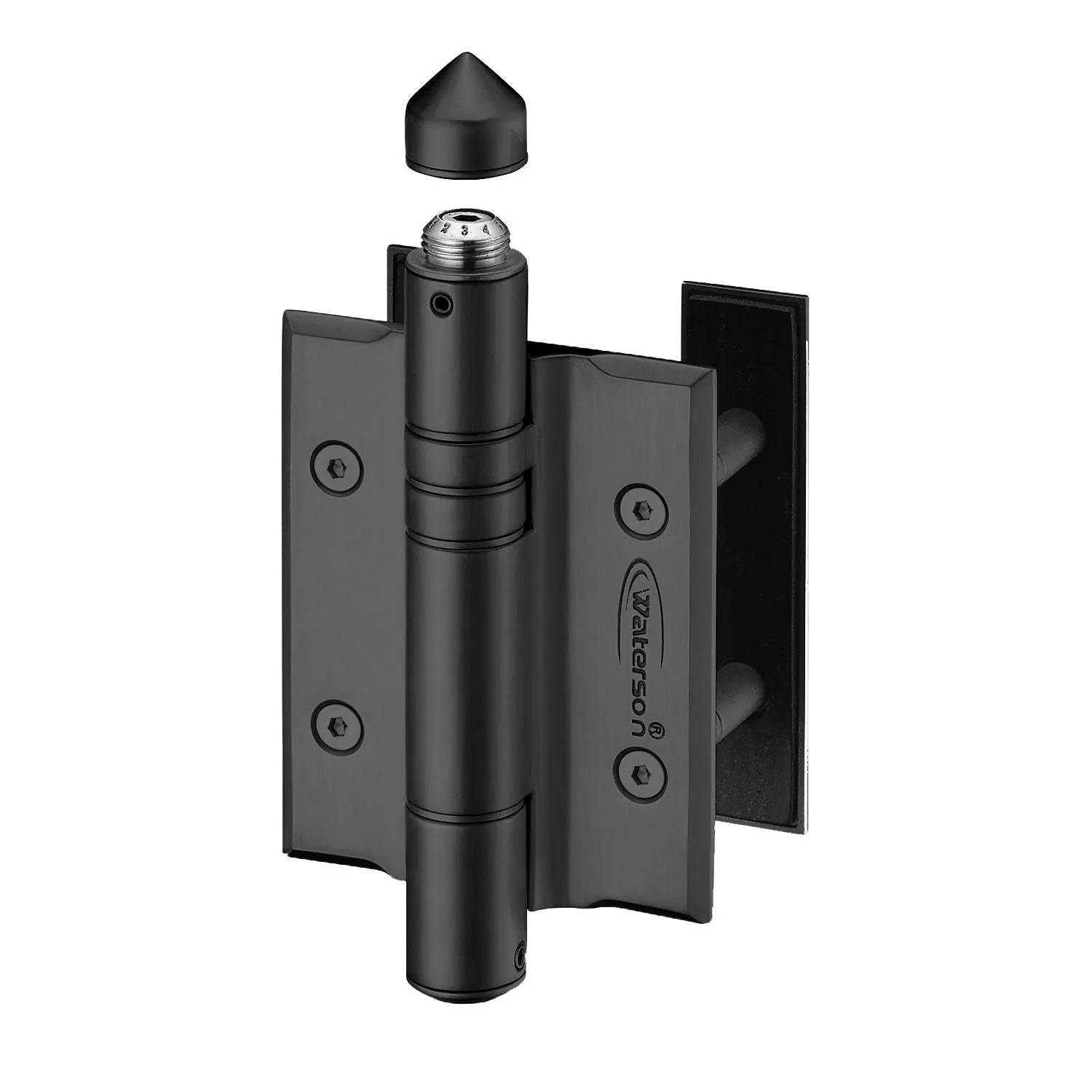

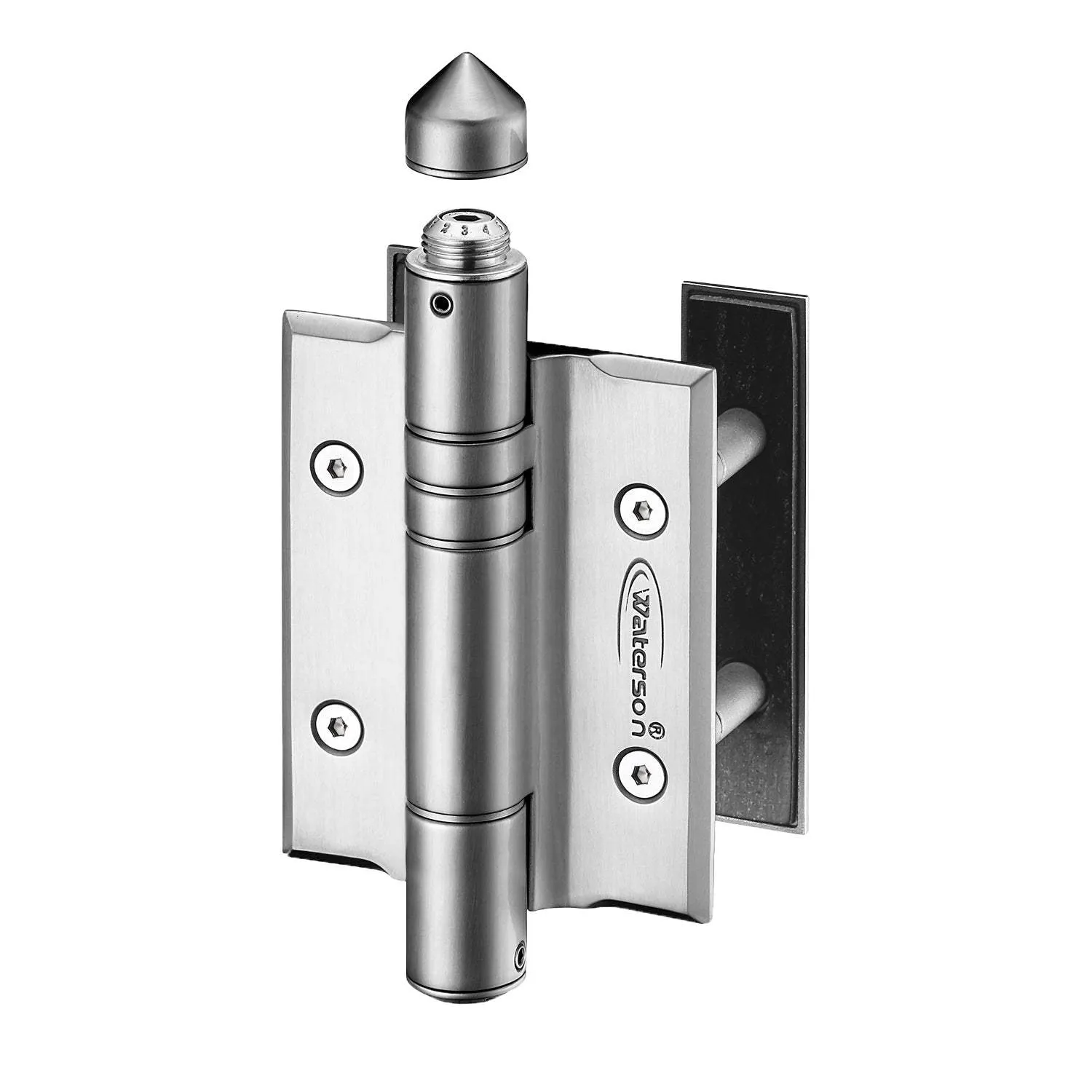

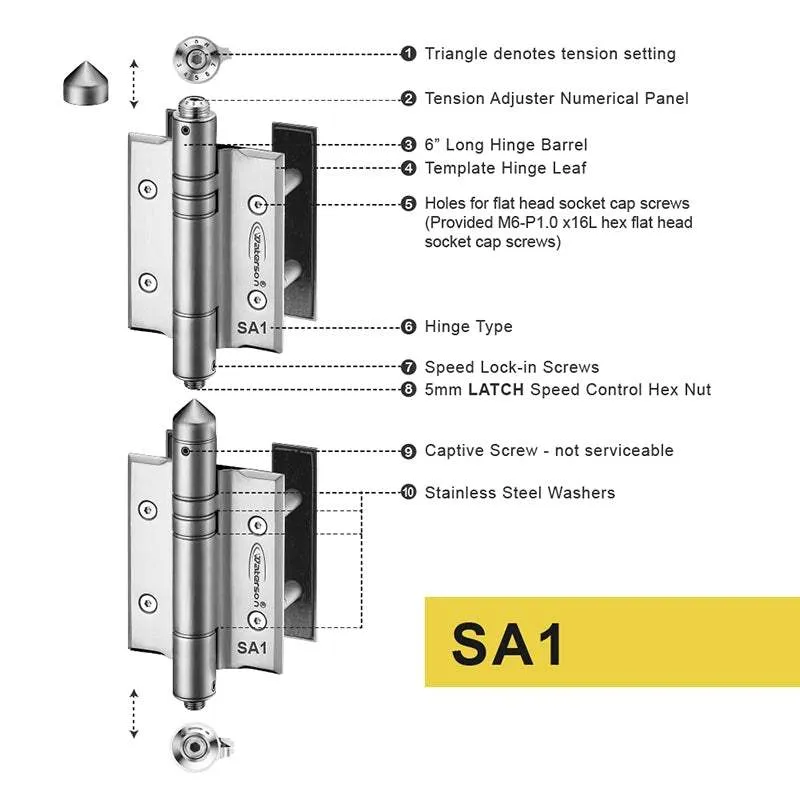

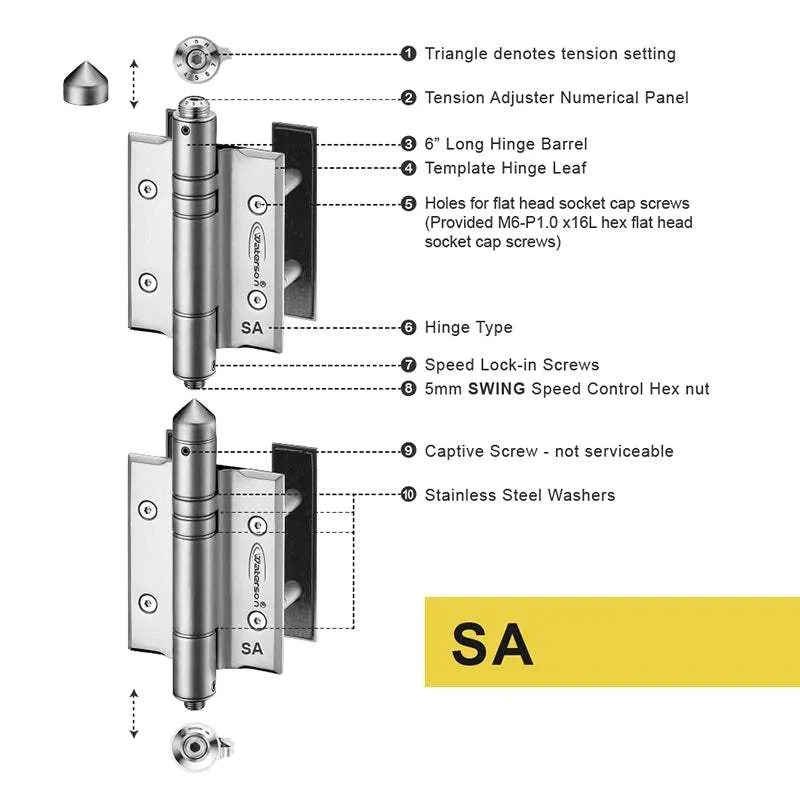

Product Description and Features

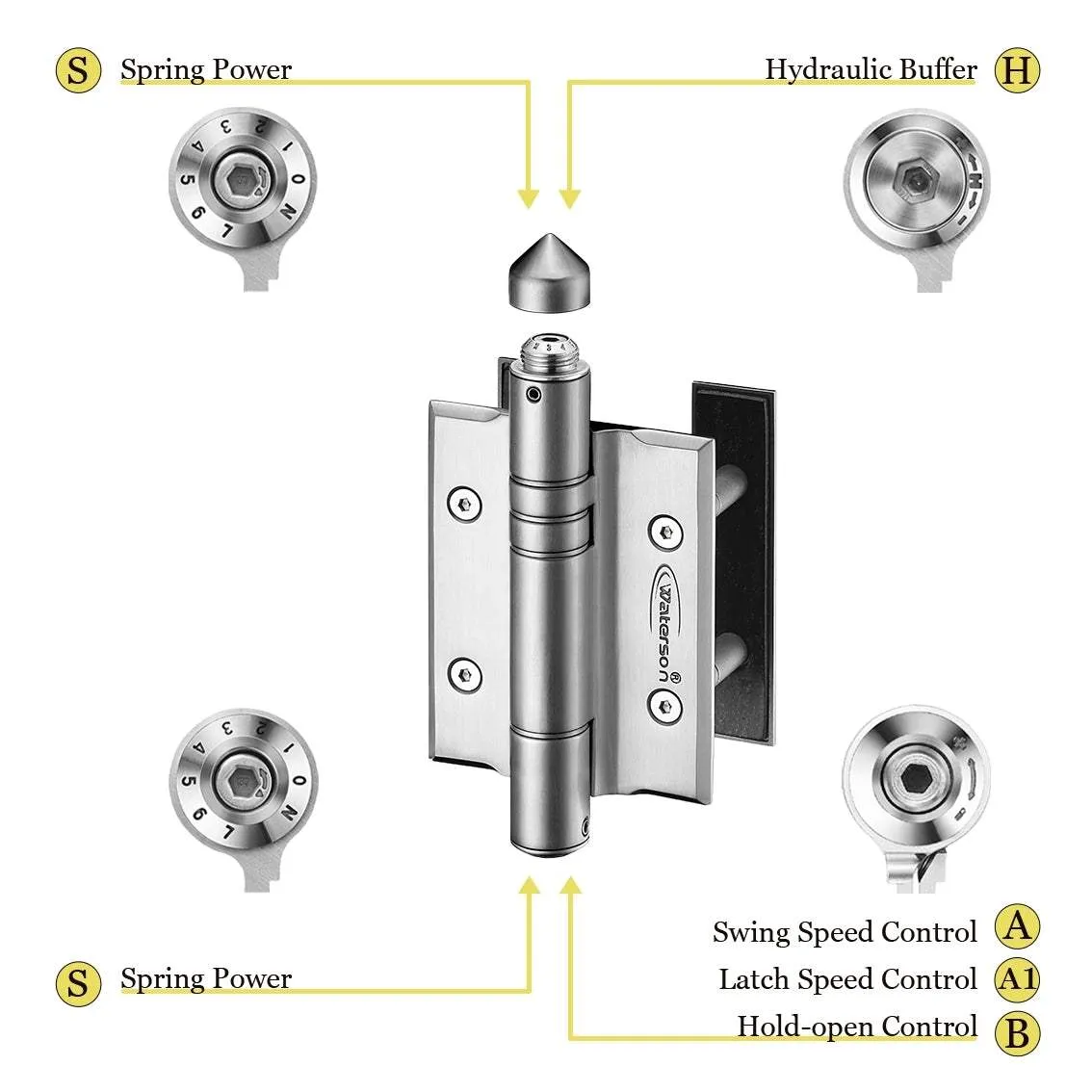

- Fully adjustable closing force and speed according to environment needs

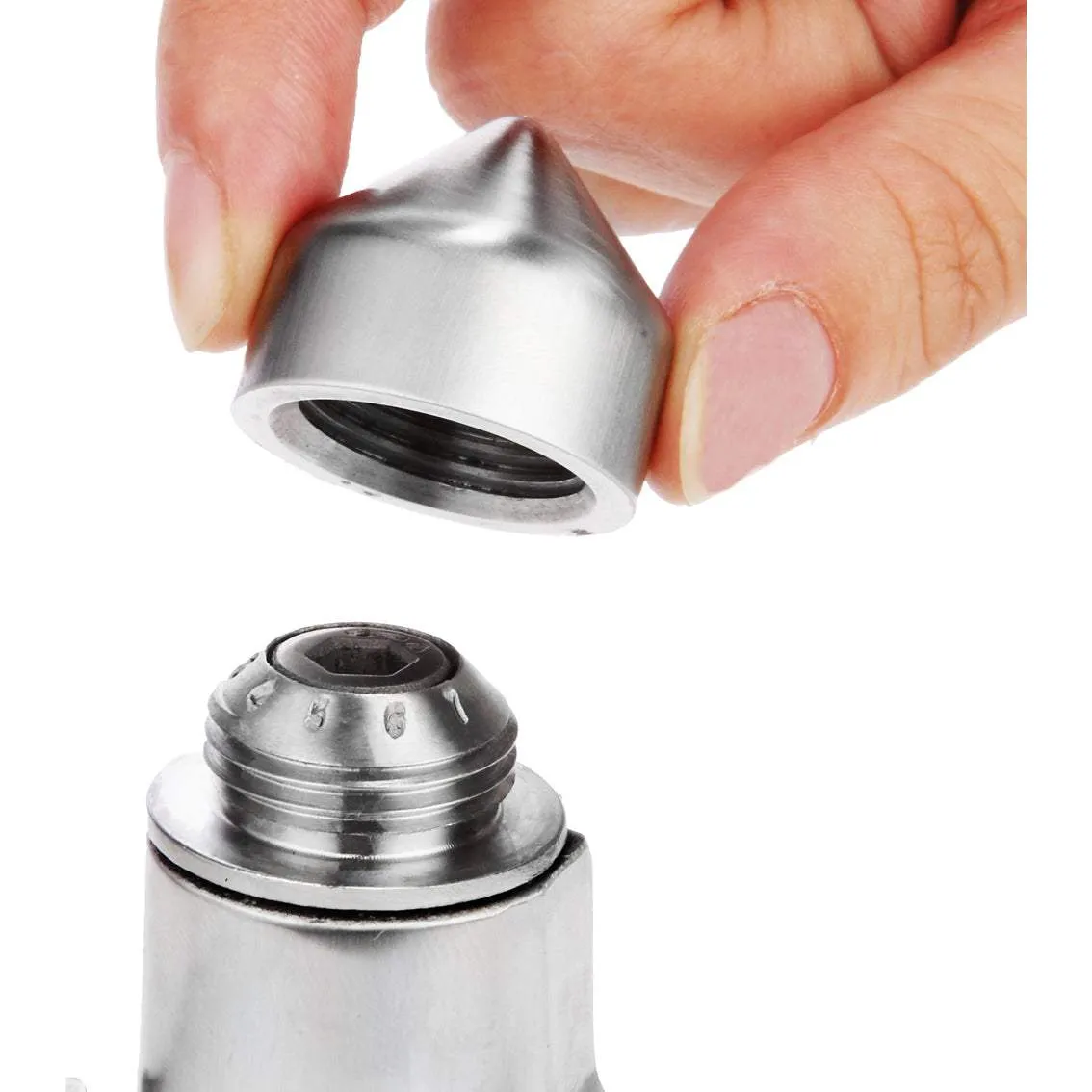

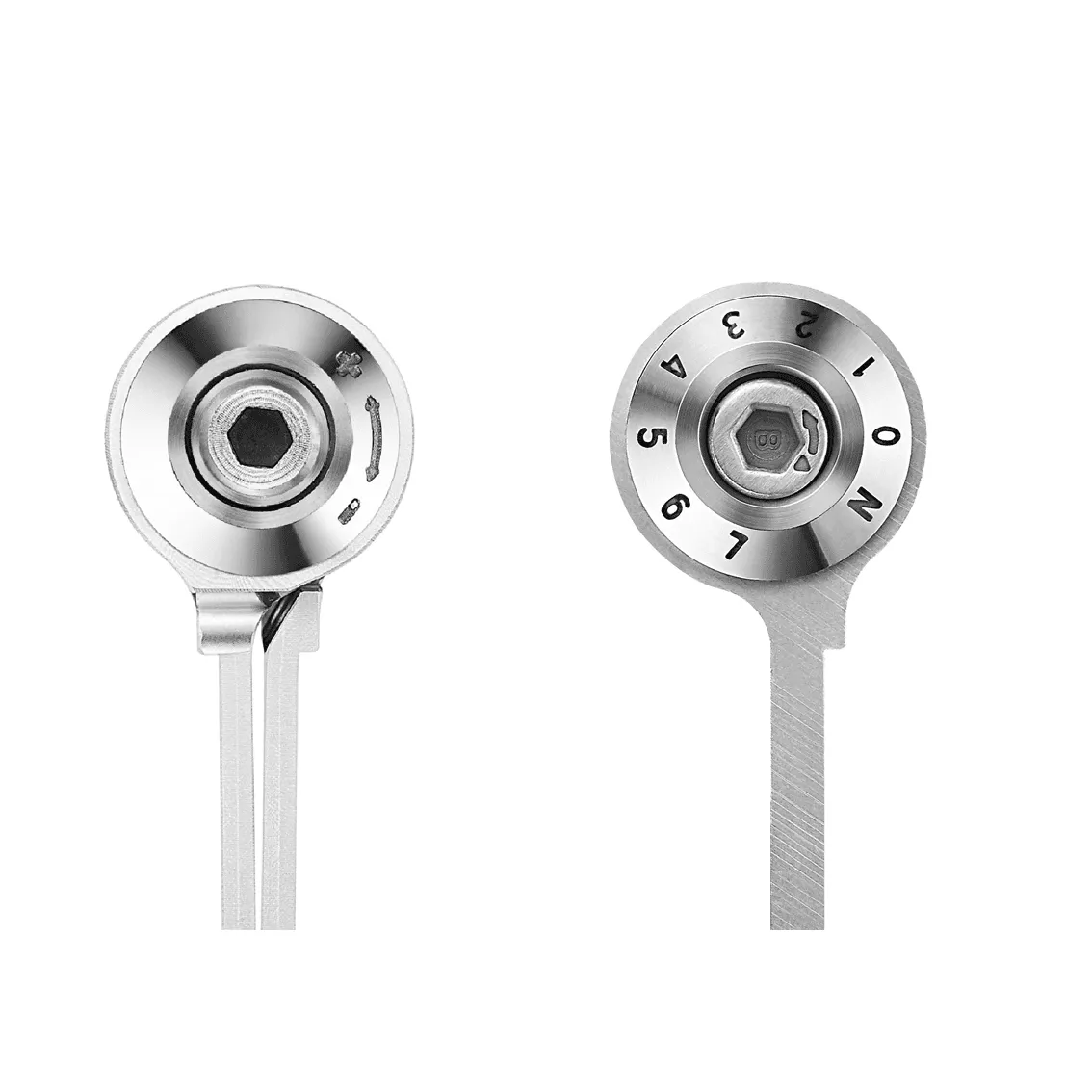

- Numerical adjustment panel on hinge end to set up precise tension
- Mechanical only mechanism supporting heavy duty and fully exterior
- An aesthetically pleasing and sleek all-in-one component
- One million cycle testing ensures low maintenance longevity
-
Get more insights of Waterson and here.
-

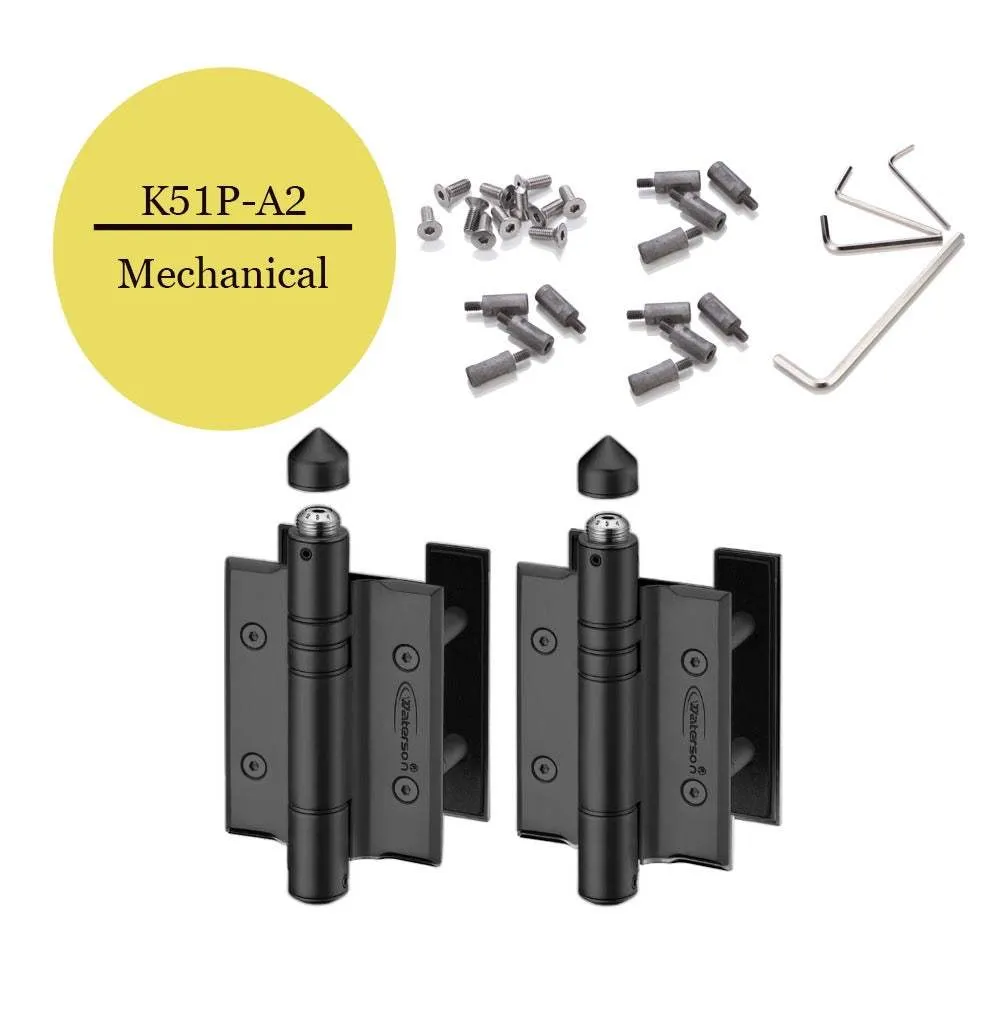

Installation Kits
- 304 stainless steel Hex Drive Flat Head M6 x P1 x 0.630"L screws included -- eight (8) of each type per hinge.
- 5mm & 4mm& 3mm& 2.5mm hex Allen wrenches

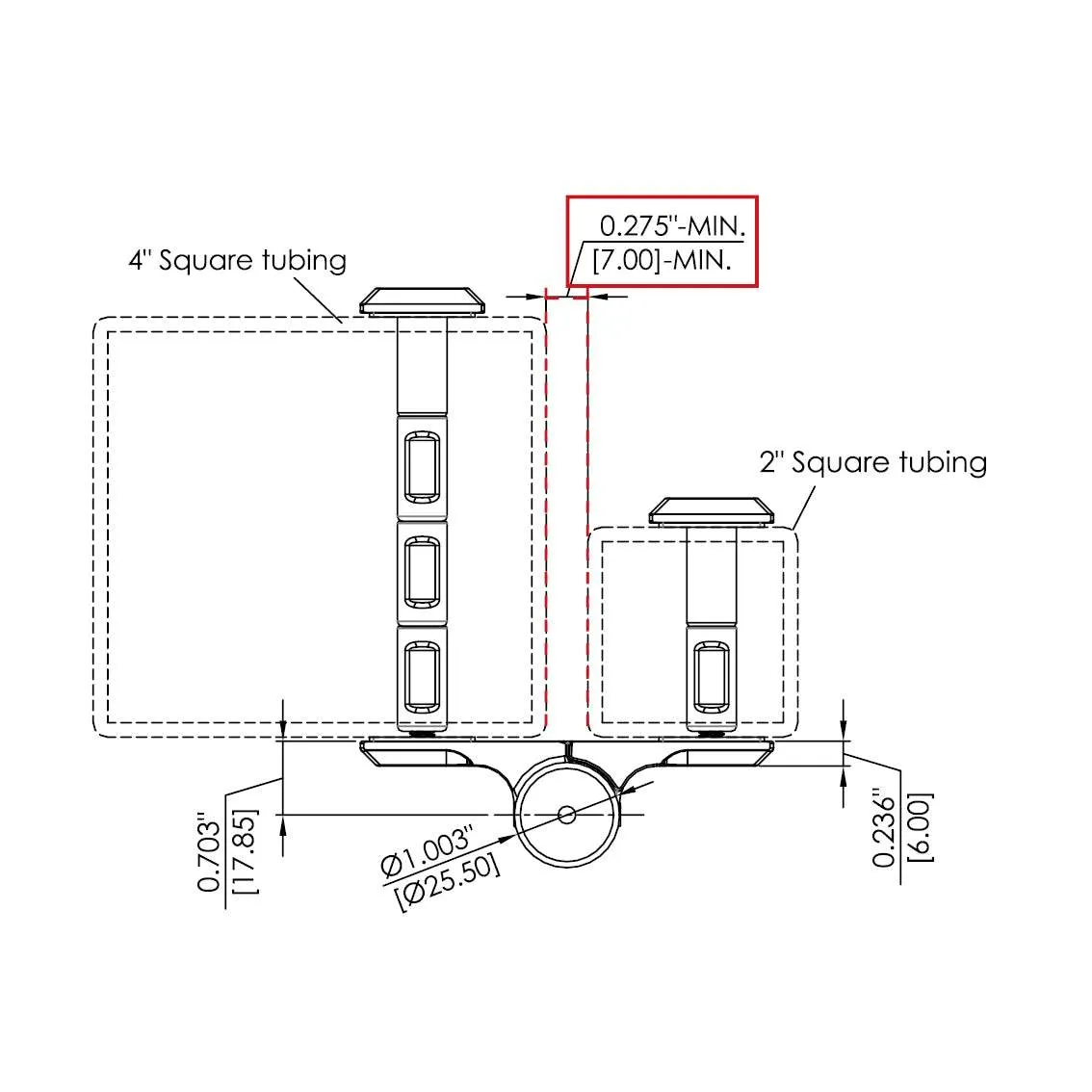

- Sets include 1” extenders.
* 1”& 2” Post Set includes four (4) extenders
* 2”,3”,4” Post Set includes twelve (12 ) extenders
Compliance Standards

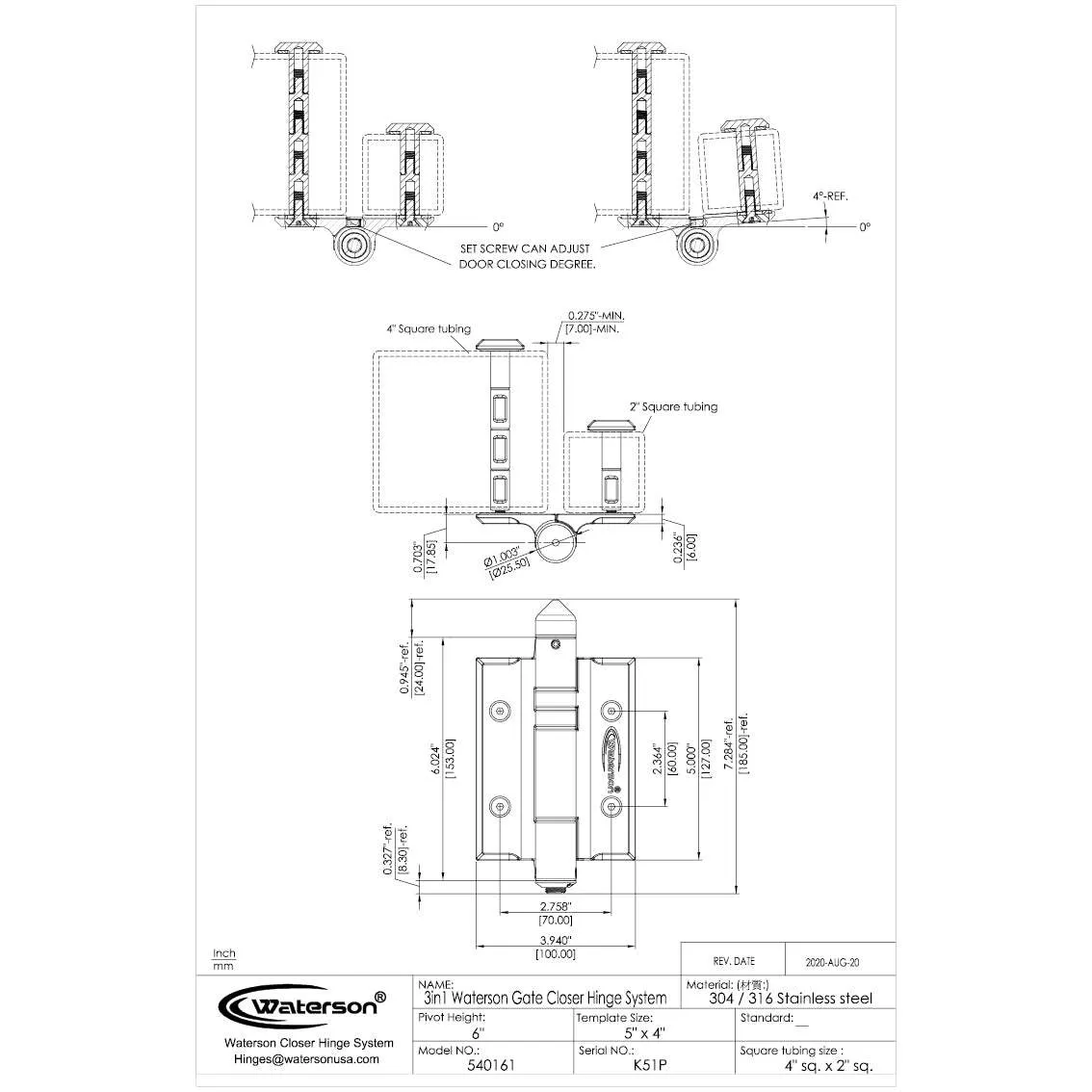

- Hinge Leaf Size: 5” x 3.940”
- CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
- ADA Force: opening force no more than 5 lbs
- ADA Closing Speed: at least 5 sec to move from m 90° to 12°
-
Product SKU K51P-A2 Hinge Type Full Surface Hinge Material Stainless Steel 304 Door Weight Up to 260lbs (75kg) Approx Door Size 1150mm W x 1800mm H (4ft x 6ft) Posts Thickness 1” & 2”, 2" & 3" & 4" Self-closing o Fluid Motion x Hold-open x Fixing Method Screw-On, only spot weld AFTER
speed adjustmentColor/Finish Satin Brushed or Black Combination/Quantity SA.SA1, 2 Pack -
